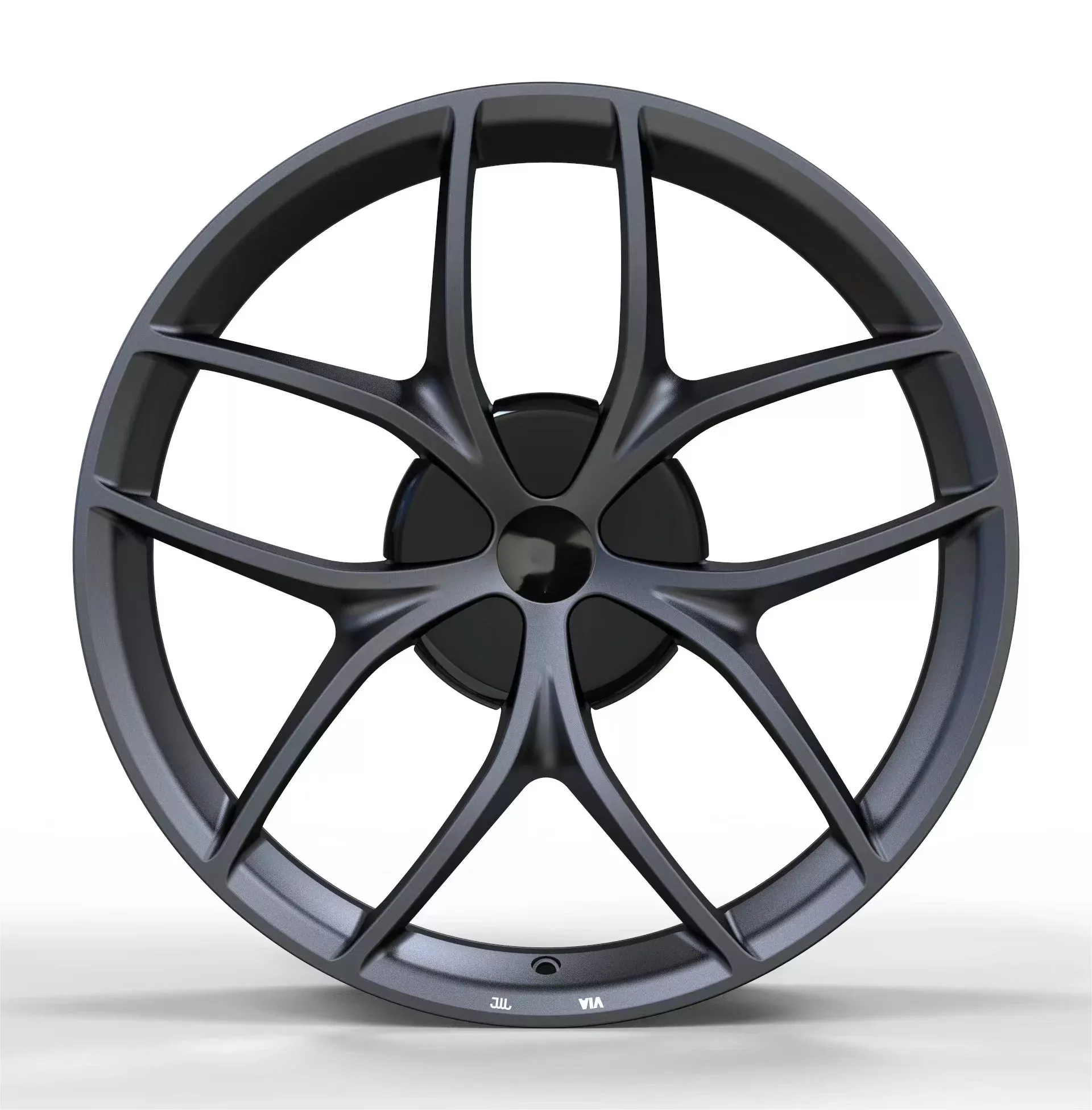

20″ Forged Zero G Wheels for Tesla Model 3 & Highland 2017+

Description

One fitment for every Model 3 generation—including Performance.

Designed specifically for the Tesla Model 3, these fully forged 20-inch wheels combine a wide, performance-focused stance with verified factory brake clearance and dedicated support for the Performance hub step.

20×9.5J · ET35 · 5×114.3 · 64.1 mm Center Bore · 850 kg/PCS

Why Choose These Wheels?

• Made for Model 3: Compatible with Model 3 2017–2023 and Model 3 Highland 2024+.
• Performance Ready: Compatible with factory Model 3 Performance and Highland Performance brake calipers.
• Performance Hub-Step Clearance: Machined to clear the 70.1 mm Performance hub step.
• Fully Forged Construction: Manufactured from forged 6061-T6 aluminum for strength, durability and lower unsprung weight.
• 850 kg Load Rating: Rated to carry up to 850 kg per wheel.
• OEM-Style Installation: 64.1 mm center bore and 60-degree conical lug-seat design.
• Balanced Fitment: The 20×9.5J ET35 specification delivers a wider, more planted appearance without requiring different front and rear wheel sizes.

Vehicle Compatibility

Tesla Model 3 2017–2023

Compatible with:

• Model 3 RWD
• Model 3 Standard Range
• Model 3 Standard Range Plus
• Model 3 Mid Range
• Model 3 Long Range RWD
• Model 3 Long Range AWD
• Model 3 Performance

The wheel includes clearance for the Performance 70.1 mm hub step and has been checked against the factory Model 3 Performance brake-caliper profile.

Tesla Model 3 Highland 2024+

Compatible with:

• Model 3 Highland RWD
• Model 3 Highland Long Range RWD
• Model 3 Highland Long Range AWD
• Model 3 Highland Performance

Brake clearance has been verified for the factory Highland Performance brake-caliper profile.

Wheel Specifications

Specification	Details
Wheel size	20×9.5J
Offset	ET35
Bolt pattern	5×114.3
Center bore	64.1 mm
Lug-seat type	60° conical seat
Lug-hole specification	15×34 mm
Load rating	850 kg per wheel
Construction	Fully forged
Material	6061-T6 aluminum
Approximate weight	13 kg per wheel
Recommended ride height	Factory height or OEM+
Fitment position	Front and rear

Wheel weight may vary slightly according to finish and manufacturing tolerance.

Recommended Tire Sizes

Preferred Fitment

265/30R20

Provides a wider contact patch and a more aggressive performance appearance. Recommended for vehicles at factory or OEM+ ride height.

Alternative Fitments

• 255/30R20 – Lower-profile alternative; verify tire load index before installation.
• 245/35R20 – Taller sidewall with a more comfort-oriented setup and additional rim protection.

Always select tires with a load index and speed rating that meet or exceed the requirements shown on the vehicle’s Tire and Loading Information label.

Use the same tire size on all four wheels unless a separately validated staggered tire setup is specified.

Brake and Hub Compatibility

These wheels have been designed and verified for:

• Factory Model 3 brake calipers
• Factory Model 3 Performance brake calipers
• Factory Model 3 Highland Performance brake calipers
• Model 3 Performance 70.1 mm hub-step clearance

Ride-Height Requirements

These wheels are intended for:

• Factory suspension height
• OEM+ ride height

For lowered vehicles, confirm:

• Front tire clearance at full steering lock
• Tire-to-fender clearance under suspension compression
• Inner tire clearance from the suspension upright
• Wheel-liner clearance
• Clearance under full passenger and cargo load

Fitment is not guaranteed on vehicles with lowered suspension, altered alignment, wheel spacers or wide-body components.

Not Compatible With

This wheel is not designed for:

• Tesla Model Y
• Tesla Model Y Juniper
• Tesla Model Y L
• Tesla Model S
• Tesla Model X
• Tesla Cybertruck
• Tesla Roadster
• Vehicles with non-factory big-brake kits
• Vehicles using unverified brake-caliper covers
• Vehicles requiring a bolt pattern other than 5×114.3

Before Ordering

1. Confirm the vehicle is a Tesla Model 3 from 2017 onward.
2. Confirm it uses the original 5×114.3 hub configuration.
3. Confirm it has factory brakes or the verified Performance brake configuration.
4. Confirm it is at factory or OEM+ ride height.
5. Do not use unverified spacers or caliper covers.
6. Select tires that meet the vehicle’s required load and speed ratings.

Production changes, previous vehicle modifications and regional specifications may affect fitment. If your vehicle has modified brakes or suspension, contact Tesery before ordering.

Product Summary

A Model 3-specific forged wheel engineered for broad fitment across both generations.

The 20×9.5J ET35 configuration fits Tesla Model 3 2017–2023 and Model 3 Highland 2024+, including factory Performance variants. Dedicated 70.1 mm hub-step clearance, verified Performance brake clearance and an 850 kg per-wheel load rating make it a strong, streamlined choice for daily driving and performance-focused builds.
